Home > Outdoor Wall Mount > Zenith LED 1-Light Wall Sconce
56197WTABZ

Zenith LED E26

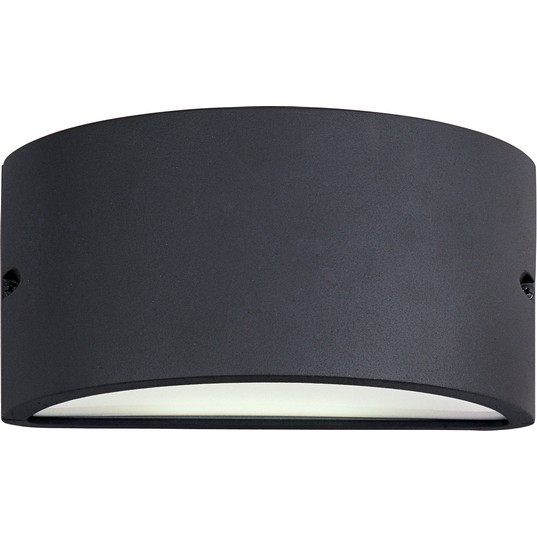

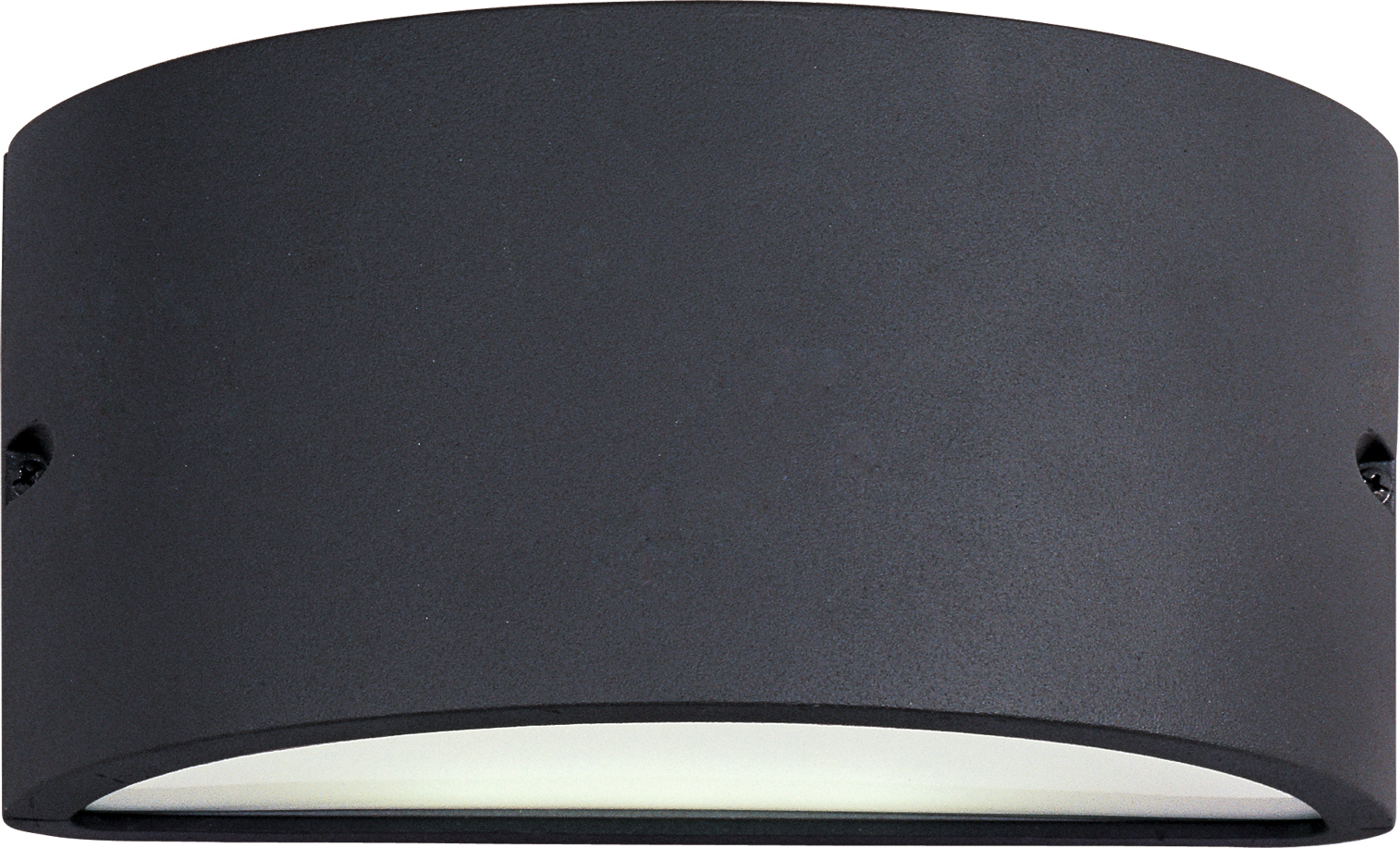

Zenith LED 1-Light Wall Sconce

56197WTABZ
$154.00


These Contemporary, European-designed outdoor fixtures are a perfect combination of energy efficiency and durability. The Zenith collection features die-cast metal frames painted with a polyurethane powder coat, finished in Architectural Bronze. The durable white acrylic lens diffuses the light nicely. The light source gives the ultimate in energy saving and long life.
Collection: Zenith LED E26 Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: Die Cast Aluminum
Finish: Architectural Bronze ABZ
Finish
Bulb
BL12E26FT120V30
12W Dimmable LED E26 FT 3000K 120V CRI>=90 Bulb
Parts / Component
GLS86197WT
GLS, 86197, 88197, 8.98"L x 4.41"W x 4.53"H, WT


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: E26 Medium An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Total Wattage: 12
Lighting Direction: Up/Down
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 1355 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included
CRI: 90+
Dimmable: Triac CL
Input Voltage: 120

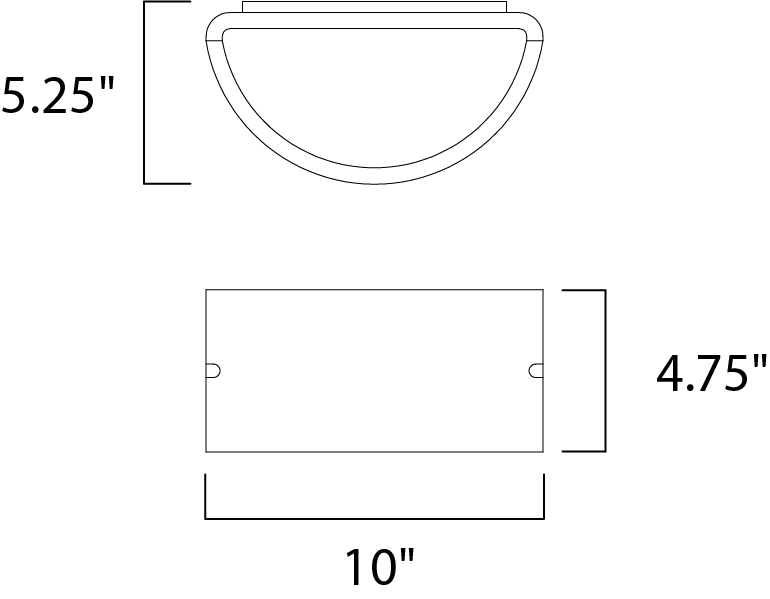

MEASUREMENTS

Width: 10"
Height: 4.75"
Extension: 5.25"
HCO: 2.5"
BP Width: 3.75"
BP Height: 3.75"
Hanging Weight: 1.8 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
Title 24: JA8 Bulb In Click for Additional Information on Title 24
Finish: Architectural Bronze
Material: Die Cast Aluminum

|



These Contemporary, European-designed outdoor fixtures are a perfect combination of energy efficiency and durability. The Zenith collection features die-cast metal frames painted with a polyurethane powder coat, finished in Architectural Bronze. The durable white acrylic lens diffuses the light nicely. The light source gives the ultimate in energy saving and long life.

Lighting Tips: Outdoor Wall Mount
